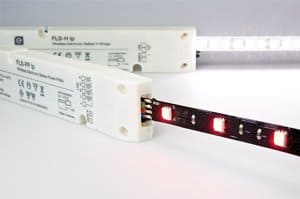

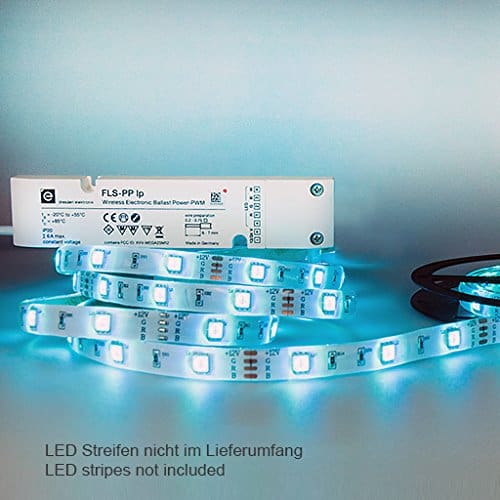

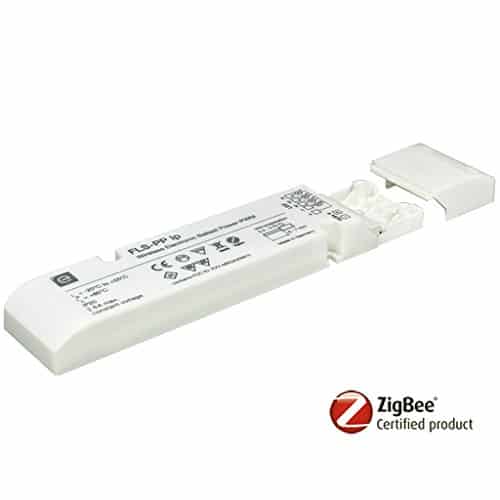

Wireless Electronic Ballast FLS-PP IP for RGBW and RGB Lights
- Suitable for 12/24V RGB and RGBW luminaires with a max. output current of 6A (max. 72W@12V and 144W@24V)
- Supports all features like on/off, dimming, color tone adjustment, adjustable white, grouping lights, saving and using predefined scenes
- Controlling via smartphone, tablet or PC by a web application (requires RaspBee Gateway from dresden elektronik)
- ZigBee Light Link certified product
- The FLS-PP lp is compatible with ZigBee gateways like OSRAM Lightify and SmartThings
- Power PWM Interface
Genuine Product
100% Authentic
Warranty
Manufacturer Warranty
Fast Shipping
All over India
Expert Support
Mon-Sat Support
Product Description
Wireless Electronic Ballast FLS-PP IP- Make your home Lighting Solutions Effective
The Wireless Electronic Ballast FLS-PP IP is a ZigBee certified product that lets you control LED lighting strips wirelessly through your smartphone control. This way you can set various shades of color with your RGBW LED Strips and set the perfect ambience for all your occasions.
The Wireless Electronic Ballast FLS-PP IP is an small module that can easily fit over some critical locations as well, like behind your television, under your bed etc. For its working, it need a constant power supply of 12/24V DC preferably through an adapter.
The good thing about the Electronic Ballast is that it being ZigBee certified, it can pair with some third party devices like Samsung SmartThings Hub. You can integrate the Ballast with the SmartThings app and even control its operations like dimming , color changing etc. through it.
Specifications
- Technical Data Dimensions 141 mm x 30 mm x 13 mm
- Operating temperature -20 to +55 °C
- Storage temperature -20 to +55 °C
- Humidity 0 to 100% r.H. non-condensing
- Degree of protection IP20
- Isolation class III
- Fuse electronically fused
- Input voltage 12/24 VDC +/-15% / max. 6 A peak voltage < 36 V
- Input current total current ≤ 6 A Derating from 40 °C, decreasing linearly to 2 A at 55 °C Routing to any of the outputs
- Standby power consumption < 0,35 W
- Communication standard IEEE 802.15.4
- Frequency range 2.4 GHz
- Number of channels 16
- Antenna Integrated Protocol ZigBee
- Profile ZigBee Light Link (ZLL)
- Certification Compliant to CE, FCC and ZLL certified
- 2 Years Warranty
Product Manuals
Tutorials & Guides
Wiring connection of LED Strip with Ballast
