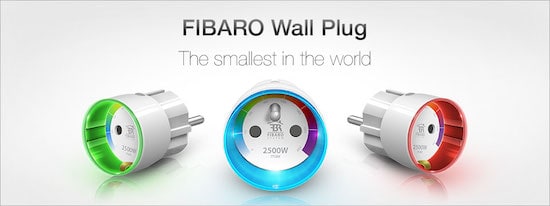

Z-Wave Fibaro Wall Plug
Brand: Fibaro
- Current and historical power consumption measuring.
- Power consumption level visualisation with the use of crystal, colour changing, LED ring,
- Controlled through other Fibaro devices or any Z-Wave controller,
- Microprocessor controlled,
- Smallest device of the type in the world.
Genuine Product
100% Authentic
Warranty
Manufacturer Warranty
Fast Shipping
All over India
Expert Support
Mon-Sat Support
Product Description
Easy Control of Home Appliances with Fibaro Wall Plug
Wirelessly control all of your home appliances through your smartphone or tablet devices with the help of Fibaro Wall Plug. The Fibaro Wall Plug is intelligent and monitors the amount of electrical power consumed by your connected devices. It also shows the data of power consumption across days or weeks and even helps you to test the range of your Z-Wave network.
Easy Installation and Operation
The Fibaro Wall Plug is very easy and handy to install. Just put the Wall Plug in your socket, connect your electrical appliance to it and just press the "B" button on your Wall Plug to add it to your Z-Wave network. And you're done!!

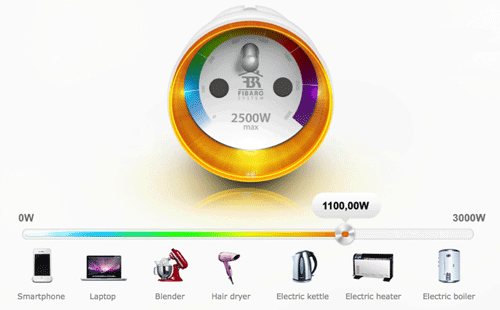

Intelligent Power Management
The Fibaro Wall Plug is aesthetically designed and features a LED ring that notifies the users about the amount of power consumed by changing its color. With the increase in power consumption, the color transits from blue to green and finally from red to violet. It can also trigger an alarm in case the power consumption goes above a preset limit.

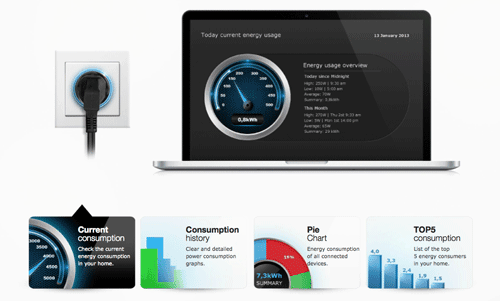

Energy Monitoring
The Fibaro Wall Plug sends real-time data to your main controller about the power consumed. You can then see and analyse the data and take proper decision to conserve energy. The Wall Plug also give stats for the top 5 energy consuming devices.

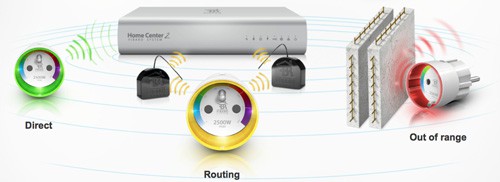

Z-Wave Network Range Tester
The Fibaro Wall Plug is smart and intelligent to help you test the range of your Z-Wave network. Press the button on the plug's casing for few seconds and the LED ring will turn purple indicating that the plug is in test mode. After some time the LED ring will change its color informing you about the strength of the Z-Wave signal at that point of test.
Specifications
Technical Details
- Power Source 110 - 230 V AC ±10% 50/60Hz,
- Rated operational output voltage: 11A/230V AC 50/60Hz - continuous load,
- Power consumption: up to 0,8W,
- Output power for resistive loads: 2,5 kW continuous load,
- In accordance with UE standards: EN 55015 (noise), EN 60669-2-1 (operational safety), RoHS 2011/65/EU, LVD 2006/95/EC, EMC 2004/108/EC, R&TTE 1999/5/EC
- Circuit temperature limit: 105°C,
- Operational temperature: 0 - 40 °C,
- For use with sockets (Compatible with each EU plug: - CEE 7/16 - max load. 2,5A; - CEE 7/17 - max load 16A; - and dual type plugs E/F),
- Radio protocol: Z-Wave Plus,
- Radio frequency: 868.42 MHz or 869.85 MHz EU; 908.4 MHz or 916 MHz US; 921.4 MHz or 919.8 MHz ANZ; 869 MHz RU; • Antenna range: up to 50 m outdoors / up to 40 m indoors (depending on building materials),
- Dimensions (D x H): 43 x 65 mm.
